Ultra Tri-Bed Deionizer

Water Quality: 500 K or 12 Mohm/cm with mixed bed polisher

Item #OTG3-TDILL
$2,325.00$2,160.00

Our ultra unit is ideal for the large volume detailer or manufacturing process that needs volume and high flow rates. These units are used in machining coolant systems, chrome plating, water-jet cutting machining, and the producing/dilution of alcohol (to name a few).

Ultra Tri-Bed Deionizer

Water Quality: 500 K or 12 Mohm/cm with mixed bed polisher

Item #OTG3-TDILL
$2,325.00$2,160.00

Our ultra unit is ideal for the large volume detailer or manufacturing process that needs volume and high flow rates. These units are used in machining coolant systems, chrome plating, water-jet cutting machining, and the producing/dilution of alcohol (to name a few).

Product Details

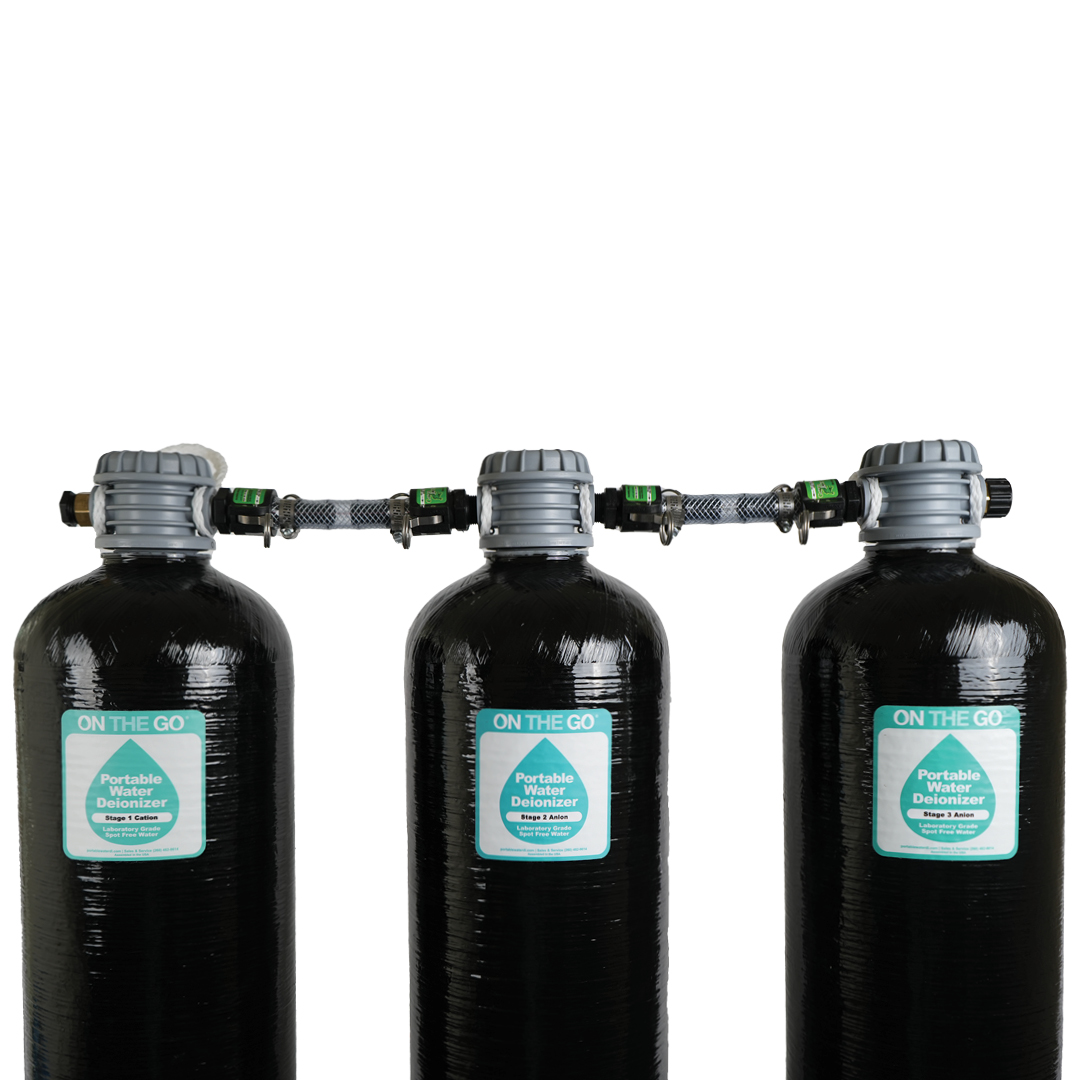

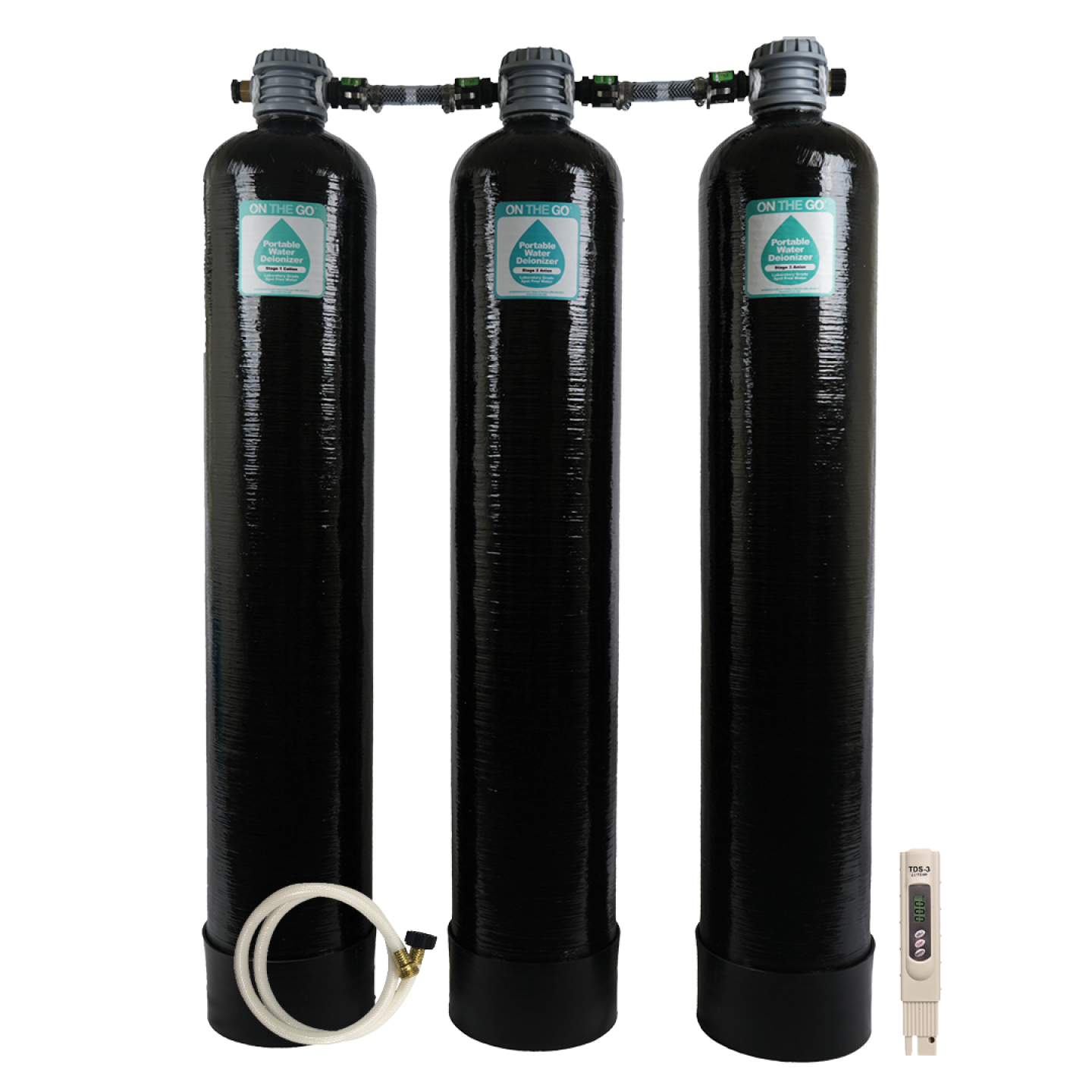

This 3-stage unit will provide high quality DI water at upwards of 6,000 gallons of DI water. Made up of one approximately 1.5 cubic foot cation tank and two 1.50 cubic feet of anion tanks, this model will produce 66% more water than the Tri-Bed Business model. The Tri-Bed Ultra Business Model will produce more water than any other deionizer on the market. Built of sturdy fiberglass, this system will give you years of use. Comes complete with the deionizer units, 4' high pressure hose, a hand-held TDS meter, and a cap/plug for the inlet/outlet.

Approximate # of rinses before refilling, assuming TDS of 250 PPM, 2 GPM, using 5 gallons per car and 30 gallons per RV.
Car - 896
RV Class A - 149

CLICK HERE FOR BROCHURE

Let us know if you need the mixed bed polisher.

Estimated Capacity
TDS (PPM) Capacity in Gallons
100 11,210
2005,600
2504,480
300 3,735
4002,800
Specifications

Part Number: OTG3-TDILL
Size: 52" h X 9" dia.
Weight: 90 LBS each
Tank: 1.50 CU FT each
Flow Rate: Less than 5-6 gallons/minute for best performance & effectiveness
Ships Freight

Let us know if you need the mixed bed polisher.
