Tri-Bed Standard Deionizer

Water Quality: 500 K or 12 Mohm/cm with mixed bed polisher

Contact for Pricing

This system was designed for customers requiring large quantities of pure water with limited space, thus demanding the system to be extremely portable and compact.

Tri-Bed Standard Deionizer

Water Quality: 500 K or 12 Mohm/cm with mixed bed polisher

Contact for Pricing

This system was designed for customers requiring large quantities of pure water with limited space, thus demanding the system to be extremely portable and compact.

Product Details

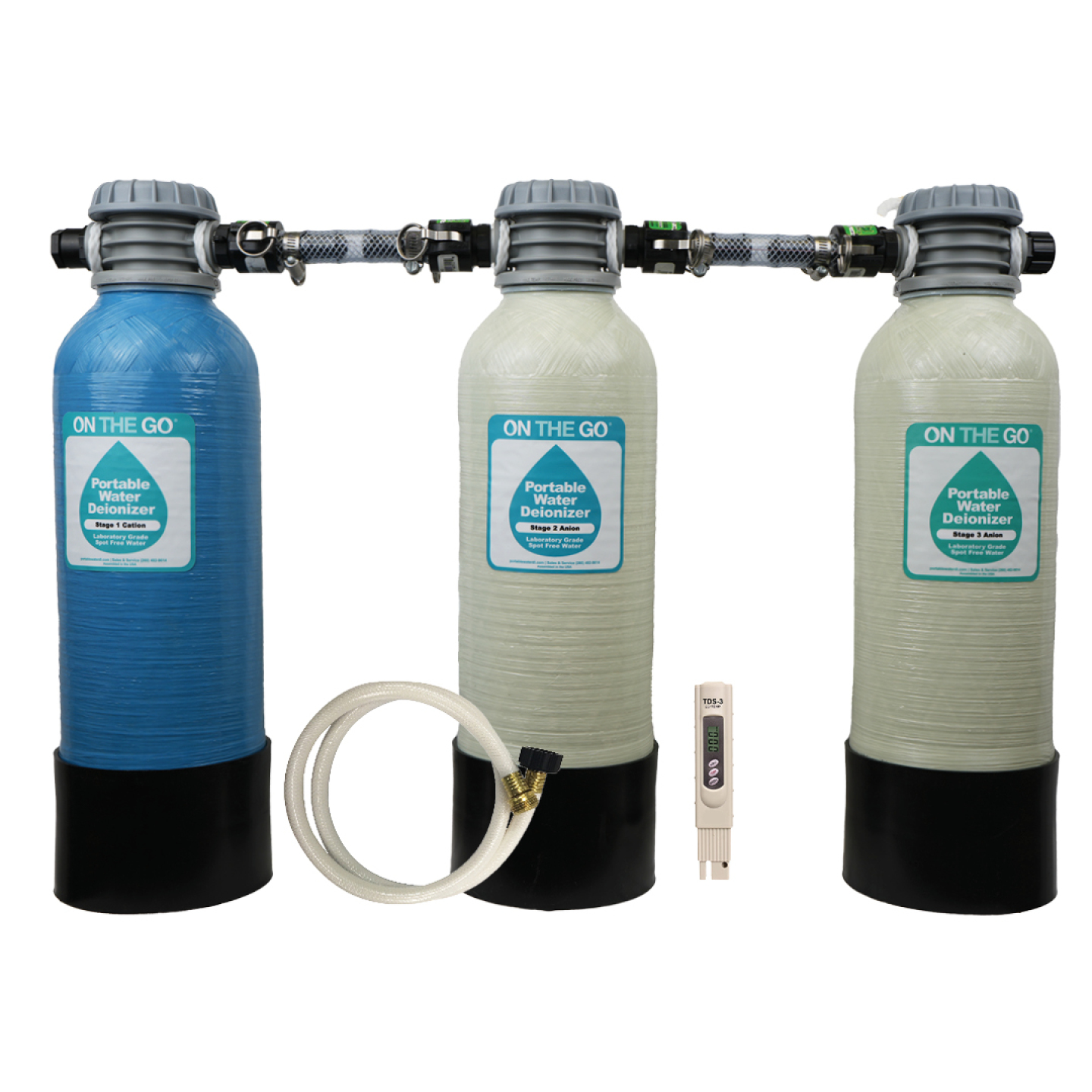

This system will produce DI water at the lowest cost per gallon, provides an additional benefit related to return on investment, and ongoing operating cost. Made up of one ¼ cubic foot tank of virgin cation resin, and two ¼ cubic foot tanks of virgin anion resin, this deionizer will produce approximately 50% more water than the dual tank deionizer. Stage 1 is the cation tank and stages 2 and 3 are anion tanks. This system needs an area of 30" wide by 22" high by 10" deep for hook-up. At 54 pounds, moving the unit is no problem. This unit comes complete with the deionizer, 4' high pressure hose, a hand-held TDS meter, and a cap/plug for the inlet/outlet.

Approximate # of rinses before refilling, assuming TDS of 250 PPM, 2 GPM, using 5 gallons per car and 30 gallons per RV.
Car - 150
RV Class A - 25

Let us know if you need the mixed bed polisher.

Estimated Capacity
TDS (PPM) Capacity in Gallons
100 1,870
200 935
250750
300620
400 470
Specifications

Part Number: OTG2-TDI
Size: 22" H X 6.75" D
Weight: 54 LBS total and 18 LBS each
Tank:  0.25 CU FT each
Flow Rate: Less than 2 gallons/minute for best performance & effectiveness
Virgin Non-regenerated Resin

Let us know if you need the mixed bed polisher.
